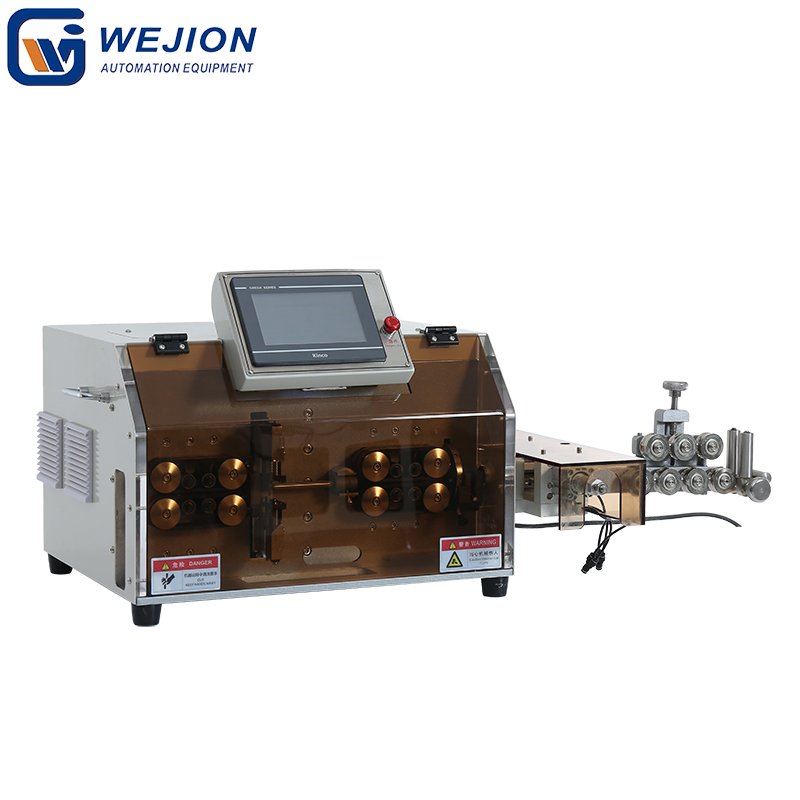

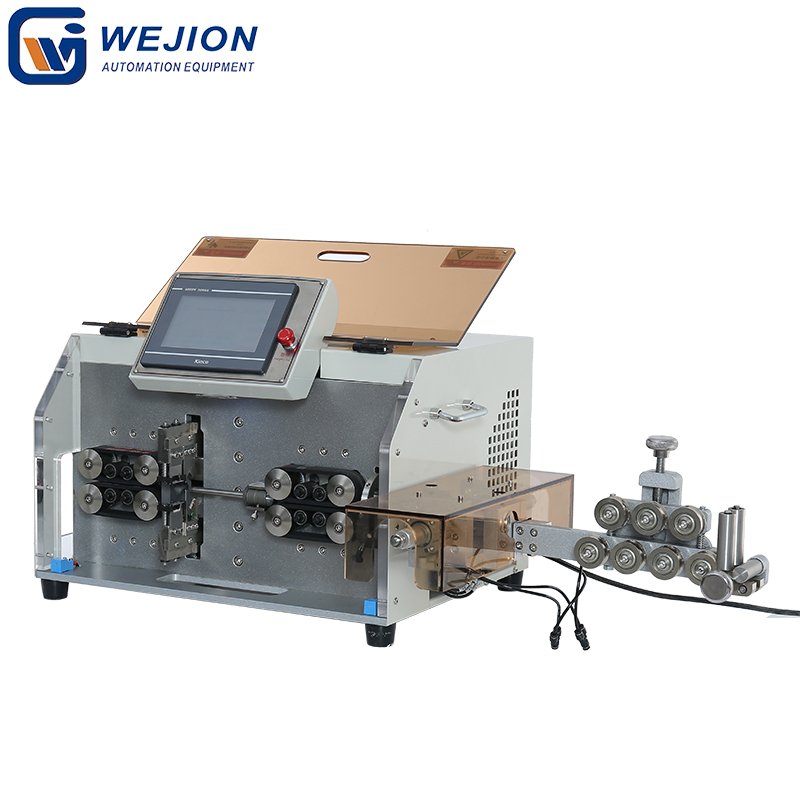

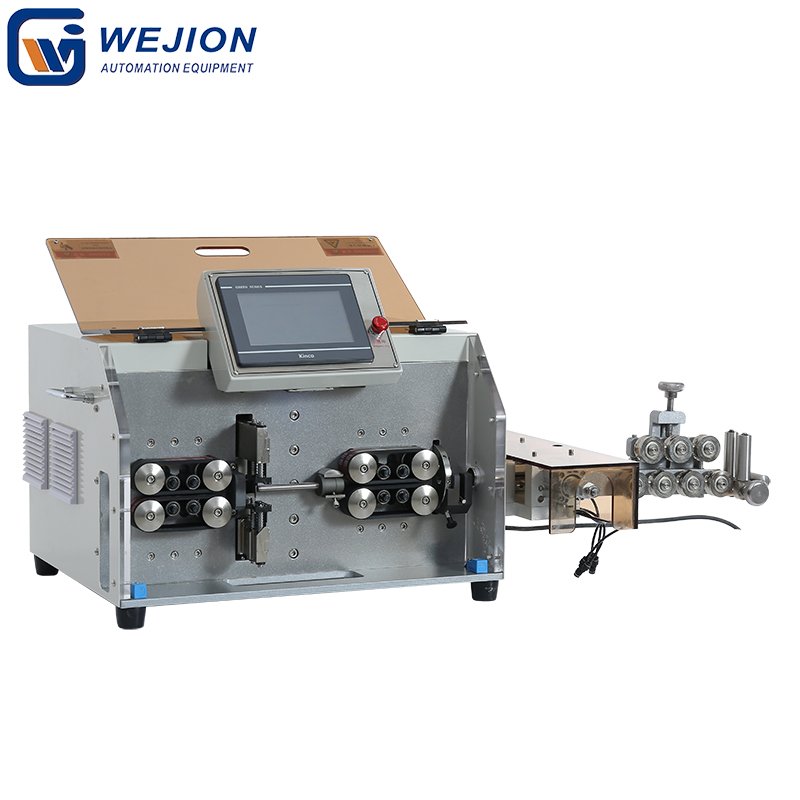

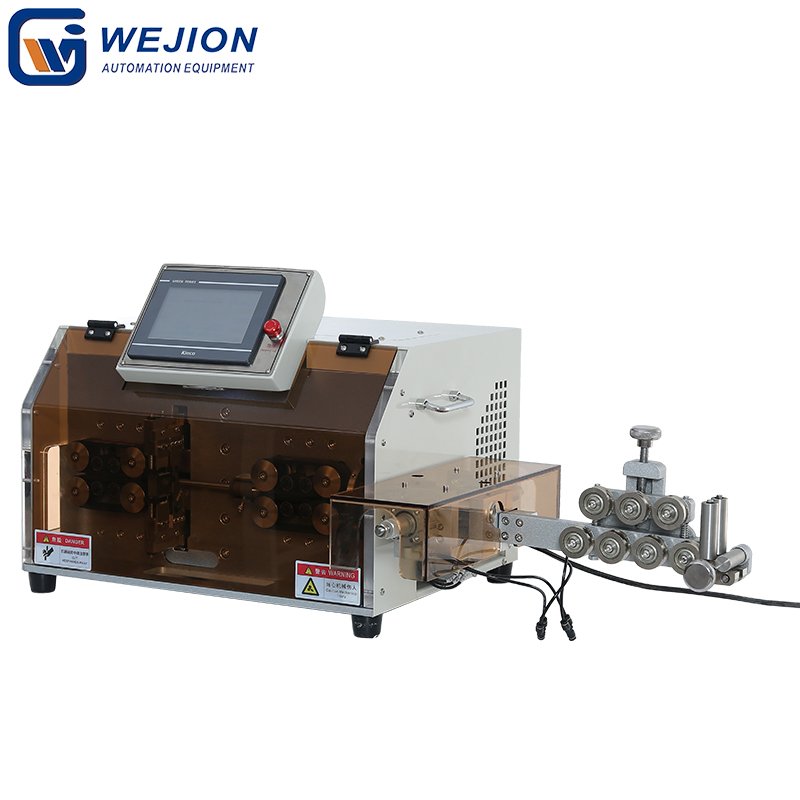

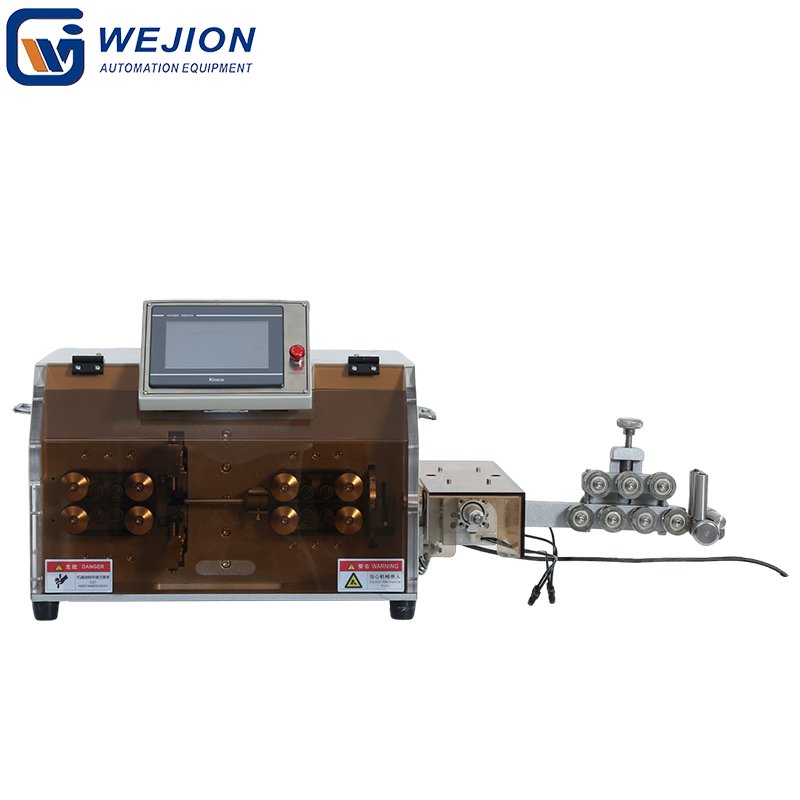

The CS-8030HZ 30mm² wire cutting and stripping machine is a heavy-duty industrial solution designed for processing large-gauge cables with precision center-stripping capability. This advanced system integrates three essential functions in one automated operation: precise cable cutting, end stripping, and mid-span insulation removal.
The CS-8030HZ 30mm² wire cutting stripping machine with center-stripping capability represents an advanced industrial solution for processing heavy-gauge cables in demanding electrical manufacturing applications. This specialized equipment combines end-stripping functionality with precise mid-span insulation removal in a single automated operation, significantly enhancing production efficiency for complex wiring requirements. Its robust construction features a dual-stage stripping mechanism incorporating primary rotary blades for complete end termination preparation and secondary precision blades for controlled intermediate stripping, achieving ±0.2mm repeatability across adjustable stripping lengths from 50-300mm. The machine’s material handling system utilizes motorized roller feed technology with 500kg clamping force, complemented by anti-slip tungsten carbide grippers and automatic cable straightening to ensure consistent processing of 30mm² conductors.
A key differentiator is the sophisticated center-stripping functionality, offering programmable mid-point positioning with ±1mm accuracy and adjustable window lengths ranging from 10-150mm, while maintaining depth control to prevent conductor damage. The system processes both stranded (up to 1260/0.2mm) and solid conductors at cycle times of 8-12 seconds, handling various insulation types including XLPE, PVC and rubber with maximum continuous conductor temperature tolerance of 90°C. Operation is managed through a 7″ HMI touchscreen interface with recipe storage capabilities, supported by PLC-controlled motion sequences that incorporate error detection for conductor nicking or incomplete strips, along with production counting and fault logging features.
Designed for heavy-duty applications in power distribution panel manufacturing, renewable energy systems, and marine electrical installations, the machine meets stringent safety standards including CE-certified interlocks, Category 3 emergency stop circuitry, and IP54 protection rating compliance with IEC 60204-1. Optional enhancements such as laser measurement verification, integrated marking systems, conductor twisting attachments, and in-line resistance testing modules further expand its capabilities for specialized production requirements. This industrial-grade solution delivers reliable, high-precision processing of 30mm² cables while maintaining conductor integrity throughout multiple stripping operations, making it particularly valuable for complex harness production where intermediate connection points are required without compromising wire quality or production throughput.
| Model | CS-8030HZ |
| Available Wire Size | AWG12 – AWG3 |
| Conductor Cross-Section | 1-30mm² |
| Cutting Length | 1-99999mm |
| Cutting Length Tolerances | ≤(0.002*L) mm |
| Stripping Length | Head 10-120mm; Tail 10-80mm |
| Conduit Diameter | φ16mm |
| Production Rate | One cores wire, 2300pcs/h; Multi cores cable, 800pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding |
| Drive Method | 16 wheels drive |
| Power Supply | 220V/110V |
| Power | 1200W |
| Weight | 115kg |
| Dimensions | 85*54*63cm |
Switchgear & Control Panel Wiring: Used to prepare cables for busbar connections, where intermediate taps or branch circuits require mid-span stripping for secure terminations.
Transformer & Substation Wiring: Processes high-current cables that need multiple connection points without cutting the conductor, ensuring uninterrupted power flow.
Circuit Breaker & Fuse Box Assembly: Enables clean mid-span stripping for parallel connections in high-voltage distribution systems.
Solar Farm Installations: Strips PV combiner box wiring, allowing for tap connections between solar arrays without cable splicing.
Wind Turbine Harnesses: Prepares large-gauge power cables for junction boxes and converter connections in wind energy systems.
Battery Energy Storage (BESS): Processes battery interconnect cables with precise mid-point stripping for parallel cell connections.
Motor & Drive Systems: Used in motor control centers (MCCs) to create intermediate connections for variable frequency drives (VFDs).
CNC & Automation Equipment: Prepares power and control cables for machine tool wiring, where multiple termination points are needed.
Mining & Construction Vehicles: Strips heavy-duty cables for electrical systems in excavators, drills, and haul trucks.
Shipboard Power Distribution: Processes marine-grade cables for switchboards, ensuring corrosion-resistant terminations.
Offshore Oil & Gas Platforms: Used in hazardous environments where reliable mid-span stripping is critical for power and control systems.
Subsea Cable Terminations: Prepares underwater cables with precision stripping for splice enclosures.
Train & Tram Wiring Systems: Strips traction power cables for pantograph connections and auxiliary power distribution.
EV Charging Infrastructure: Prepares high-current cables for fast-charging stations, allowing for intermediate power taps.
Aerospace & Aviation Wiring: Used in aircraft harness manufacturing where weight-saving and reliability are crucial.
Complex Wiring Assemblies: Enables mid-span stripping for custom harnesses in automation, robotics, and medical equipment.
Data Center Power Distribution: Processes busway and PDU (Power Distribution Unit) cables with multiple connection points.
Military & Defense Applications: Meets stringent standards for ruggedized cable processing in defense electronics.

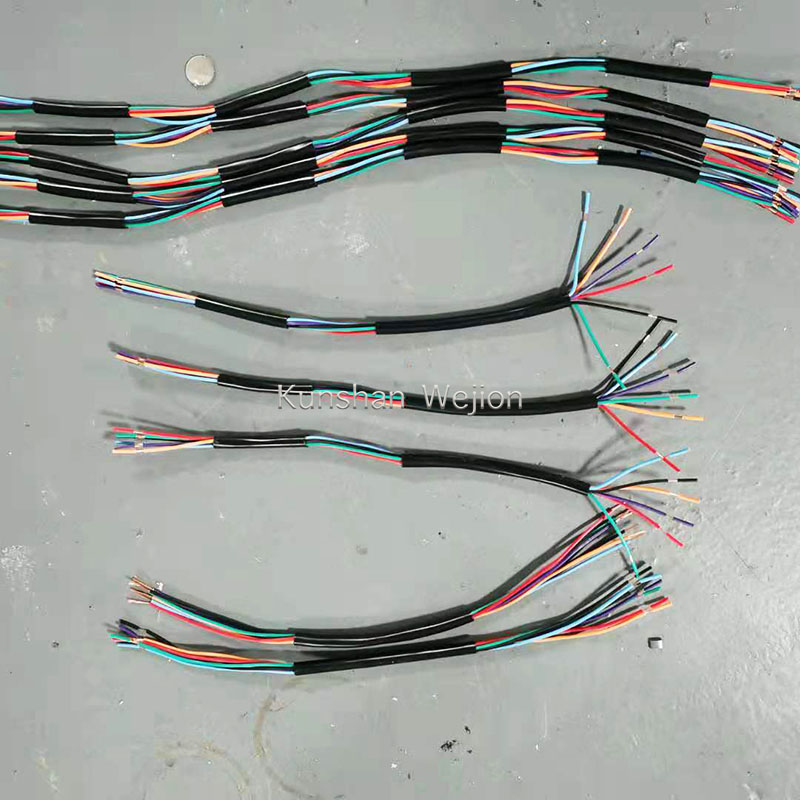

Precision Mid-Span Stripping: Ensures clean, damage-free insulation removal for intermediate connections.
High Throughput: Reduces manual labor in large-scale cable preparation.

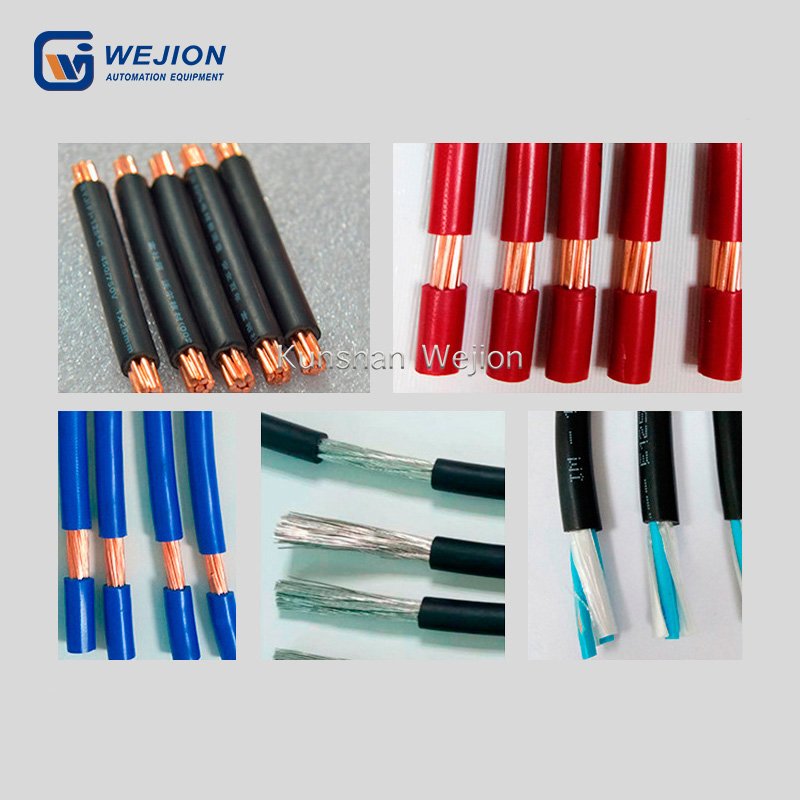

Versatility: Handles various insulation types (XLPE, PVC, rubber) and conductor types (stranded/solid).
Automation-Ready: Integrates with crimping, marking, and testing systems for complete production lines.
