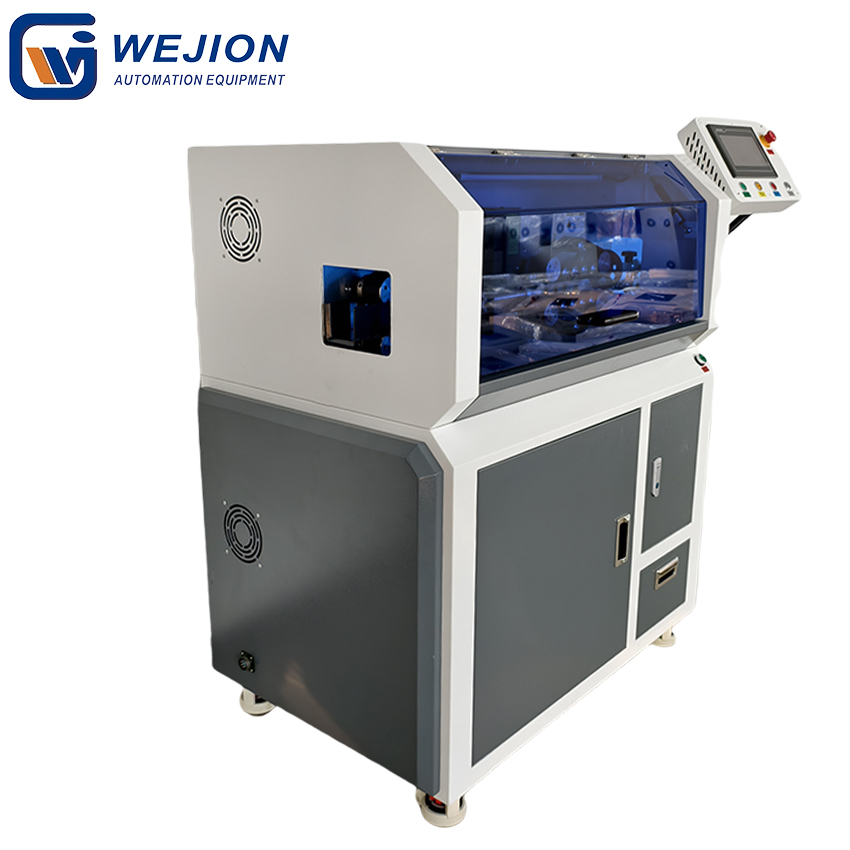

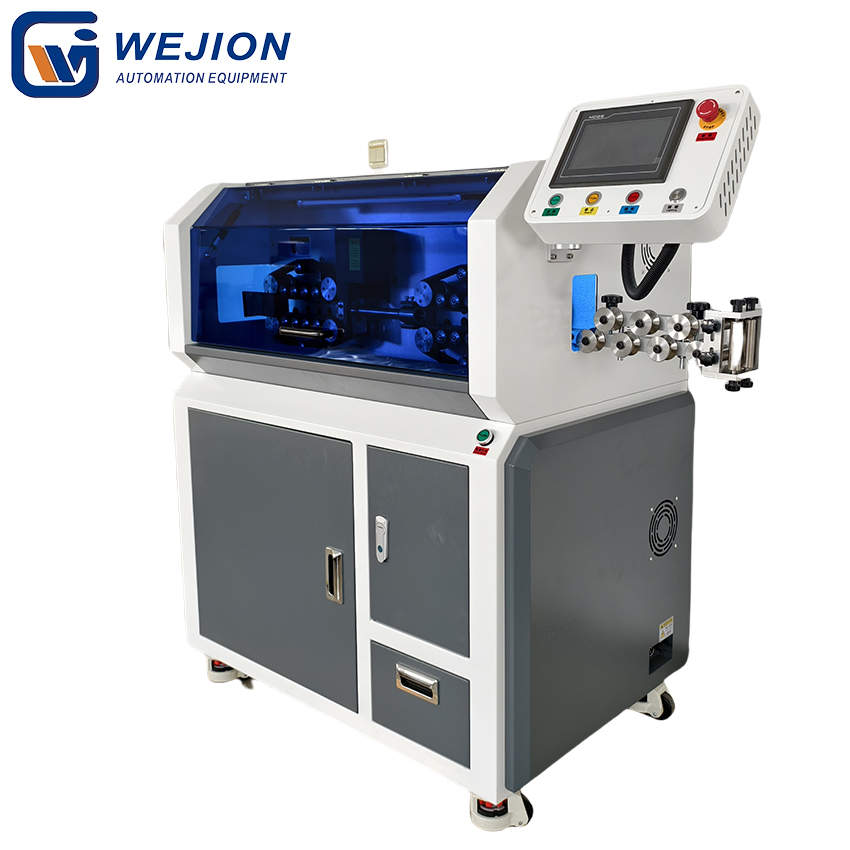

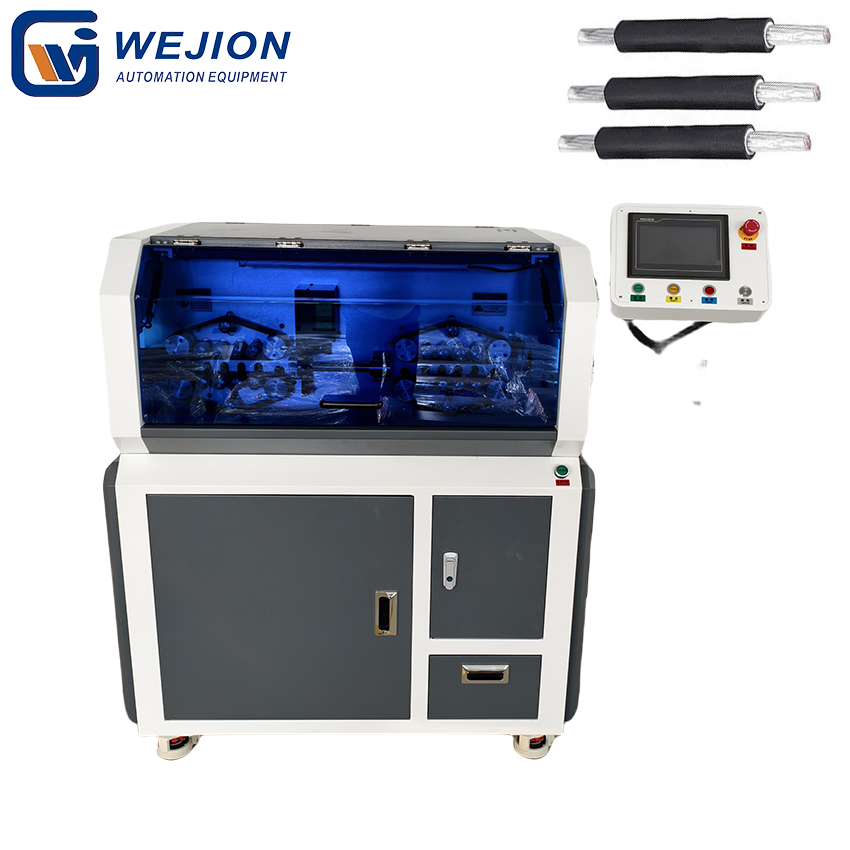

The CS-B150 Cable Stripping Machine is a high-performance stripping device designed for processing wires with cross-sectional areas ranging from 6mm² to 150mm². It is widely used in electrical engineering, automotive wiring, cable manufacturing, and recycling industries due to its precision, efficiency, and durability.
The CS-B150 fully electric cable stripping machine combines advanced automation control technology and an efficient wire feeding system, making it very suitable for processing large cables of various types. Its large-capacity storage, electrically controlled roller spacing, and electric skipping tube function provide a high degree of flexibility and precision. The machine’s airless design makes it more versatile and reduces production and maintenance costs. Combined with the intuitive operating interface of the 7-inch color touch screen, the equipment is very easy to operate and is suitable for various cable processing needs. It is widely used in power, communications, construction, new energy vehicle wiring harnesses, and other industries that require high-precision stripping.
Functions & Features:
1. Independent research and development and patented technology
* This machine is independently developed and has an intellectual property patent procedure, ensuring the uniqueness and innovation of its technology.
* Equipped with a 7-inch color touch screen and a high-speed motion control system, the operating interface is intuitive and simple. The operator can directly adjust various working parameters through the touch screen, which greatly simplifies the operation process of the equipment.
* Due to the use of advanced control systems, the machine has high stability and can run stably for a long time, suitable for high-intensity production environments.
2. 12 feeding wheel groups and belt feeding system
* The 12 feeding wheel groups and belt feeding system provide a larger contact area, ensuring more stable and accurate cable feeding, and avoiding the deviation of the cable during transmission.
* The contact area between the belt and the wire is larger, which can achieve smoother transmission, and there is no indentation on the cable surface, ensuring the processing accuracy and integrity of the wire.
* The belt feeding system is suitable for various types of cables, ensuring high precision and lossless processing of the cable during transmission.
3. Large-capacity memory
* The machine is equipped with a large-capacity memory that can save 160 sets of processing parameters at the same time, which is convenient for fast switching of processing configurations for different cables or products.
* The operator can select different preset programs according to different wires and production requirements, simplify operation, reduce the workload of manual adjustment, and improve production efficiency.
4. The distance between the front and rear rollers controlled by the motor
* The distance between the front and rear rollers of the equipment is controlled by the motor, which is very easy to operate. Just enter the wire diameter, and the equipment can automatically adjust the distance between the wheels to accurately adapt to the specifications of different cables.
*This function ensures the stable and reliable cable feeding process, while avoiding the errors and inconvenience caused by manual adjustment.
5. Electric jump guide tube and freely set stripping length
*Electric jump guide tube: This function enables the machine to accurately adjust the cable during the stripping process, especially when processing longer cables.
*Longer stripping length of the rear wheel: The device supports adjusting the jump range of the rear wheel through electric control, and the upper and lower jump distances can be freely set to increase the stripping length and flexibility.
*This function enables the machine to maintain high-precision stripping when processing long cables, and improves stability, which is suitable for complex processing tasks.
6. All-electric drive system, air source-free design
*All-electric drive: The machine is driven by a motor and does not require an external air source, which greatly simplifies the use and maintenance process of the equipment.
*Screw rod upper and lower pressure wheel system: The upper and lower pressure wheels are driven by electric control screw rods, which can accurately control the feeding and pressing of the cable without relying on the air source, enhancing the versatility and reliability of the equipment.
*The air source-free design makes the equipment more environmentally friendly and energy-saving, and reduces the maintenance cost of the air source equipment.
| Machine Model | CS-B150 |
| Wire range | 6-150 mm² |
| Cutting Length | 60-99999.99mm |

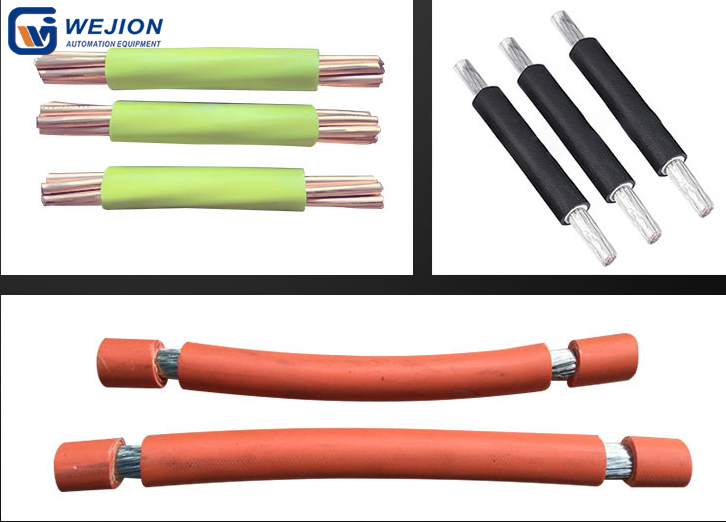

| Stripping Length | Head 0-500mm; Tail 0-250mm |
| Conduit Diameter | φ28mm |
| Drive Method | 14 wheels drive |
| power | 1500W |

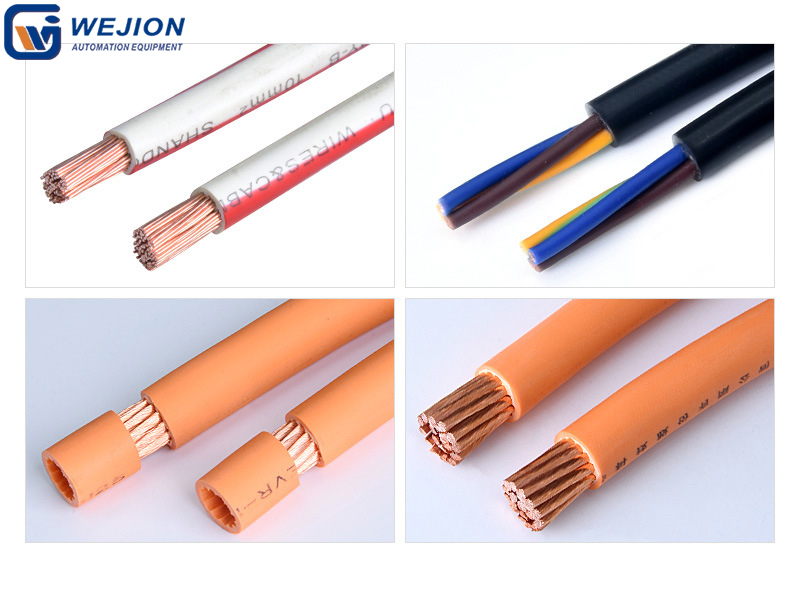

| Wire types | Multi – strand copper wire, coaxial cable, sheath wire |
| Blade material | Imported high speed steel |
| Production Rate | 1500-2500pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding wire, no indentation on cable |
| Memory function | Up to 200 groups of programs can be stored |
| Weight | 270kg |
| Dimensions | 118*65*120cm |
| Machine Model | CS-B150 |
|---|---|
| Wire range | 6-150 mm² |
| Cutting Length | 60-99999.99mm |
| Stripping Length | Head 0-500mm; Tail 0-250mm |
| Conduit Diameter | φ28mm |
| Drive Method | 14 wheels drive |
| power | 1500W |
| Wire types | Multi – strand copper wire, coaxial cable, sheath wire, etc |
| Blade material | Imported high speed steel |
| Production Rate | 1500-2500pcs/h |
| Display Screen | 7 inch touch screen |
| Wire Feed Method | Belt feeding wire, no indentation on cable |
| Memory function | Up to 200 groups of programs can be stored |
| Weight | 270kg |
| Dimensions | 118*65*120cm |
Heavy Machinery & Manufacturing Plants: Used to power large motors, CNC machines, and industrial automation systems due to high current-carrying capacity.
Mining Operations: Suitable for underground or surface mining equipment, including excavators, crushers, and conveyor systems.
Oil & Gas Facilities: Deployed in refineries, drilling rigs, and petrochemical plants for power distribution and motor feeders.
Medium-Voltage Distribution (Up to 35 kV): Often used as underground or overhead lines in substations and transformer connections.
Renewable Energy Farms: Connects wind turbines or solar inverters to the grid in utility-scale projects.
High-Rise Buildings: Feeds electricity to main distribution boards (MDBs), elevators, and centralized HVAC systems.
Data Centers: Supports high-power server racks and backup generators.
Tunnels & Bridges: Provides robust power supply for lighting, ventilation, and safety systems.
Railway Electrification: Powers overhead catenary systems or third rails in metro/light-rail networks.
EV Charging Stations: Used in fast-charging (DC) stations requiring high current throughput (e.g., 150–350 kW chargers).
Shipboard Power Systems: Supplies propulsion systems, cranes, and onboard heavy machinery.
Offshore Wind Farms: Subsea cables for inter-array connections between turbines.
Festivals/Concerts: Powers stages, lighting rigs, and temporary substations.
Film Production: Used for high-wattage studio lighting and equipment.
High Current Rating: Typically handles ~250–400 A (depending on insulation/material).
Durability: Armored (SWA) versions resist mechanical stress, while XLPE insulation withstands heat.
Flexibility: Fine-stranded versions (e.g., H07RN-F) suit mobile applications.
