Efficient Wire Stranding

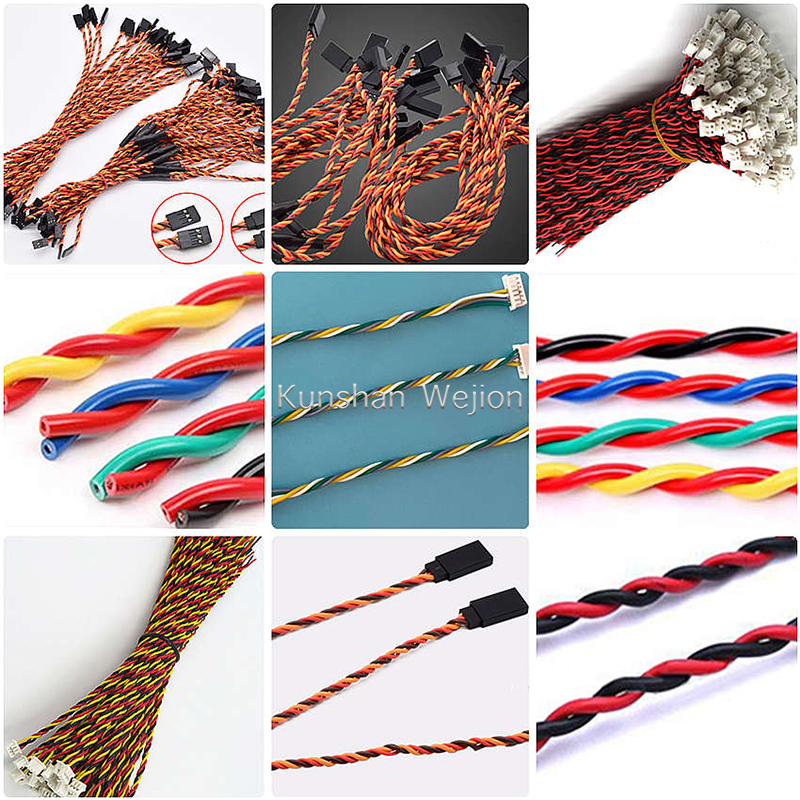

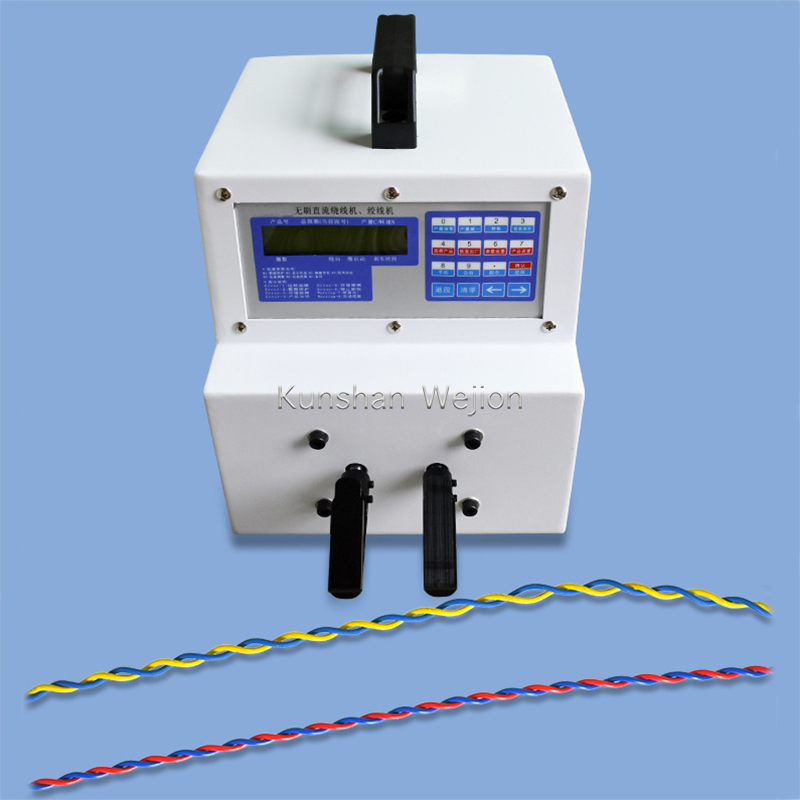

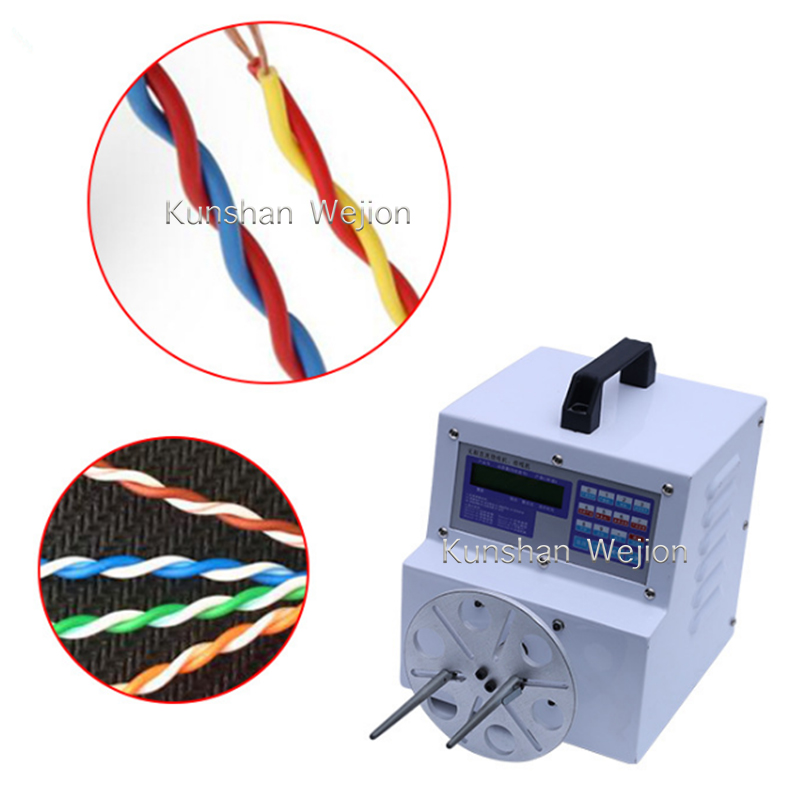

The JX – 100 is specialized in stranding two wires, forming a twisted structure. It accommodates wires with a diameter ranging from 32AWG to 13AWG, suitable for diverse electrical applications. With an adjustable strand length from 50 – 80mm, it offers flexibility. Operating at a speed of 1500 pieces per hour, it ensures high – efficiency production.
Versatile Winding Processes
Equipped with 20 different winding processes, the JX – 100 can be customized to various stranding requirements. It allows users to adjust the stranding pattern, tightness, and direction, enabling precise and consistent results for standard twisted pairs or complex wire configurations.
Advanced Speed and Direction Control
Users can set different winding speeds for different segments, maintaining constant torque at low and high speeds. Different segments can have distinct winding directions, and the machine features positive and negative counting functions. This control is vital for producing high – quality stranded wires for specific applications like audio equipment or wiring harnesses.
Intelligent Production Management
After stranding, the JX – 100 provides production statistics, including the total number of pieces and sets. It has an automatic segment – advancing function and allows users to select specific winding segments, streamlining production and offering flexibility in planning.
Gentle Start for Fine Wires
To protect fine wires from excessive tension during startup, the JX – 100 offers 0 – 9 slow – start modes, which can be set individually for different segments. This is crucial for applications involving thin and fragile wires, such as high – end audio coils or precision electronics.
User – Friendly Interface

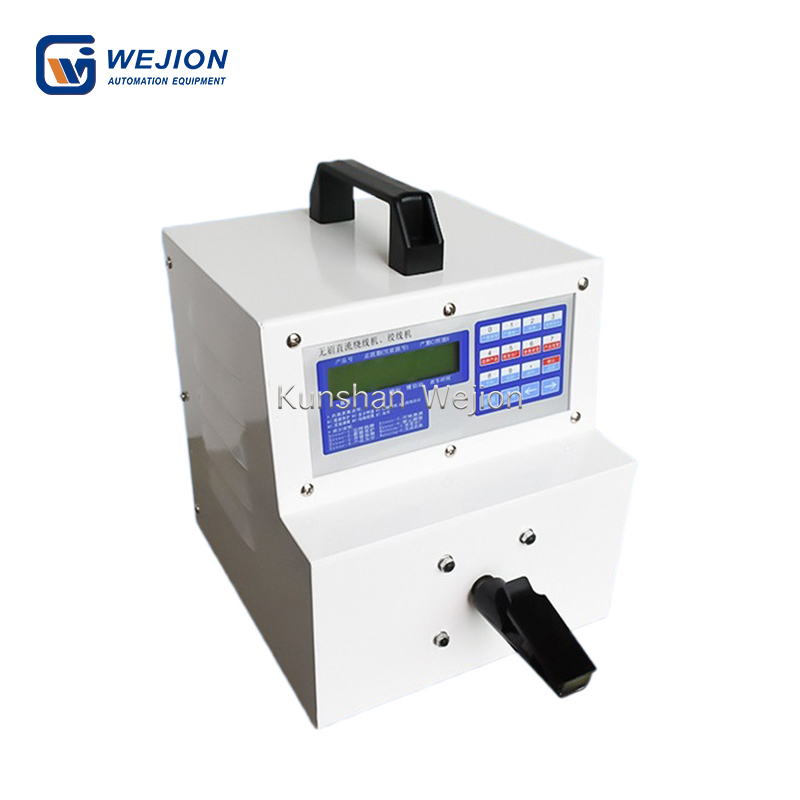

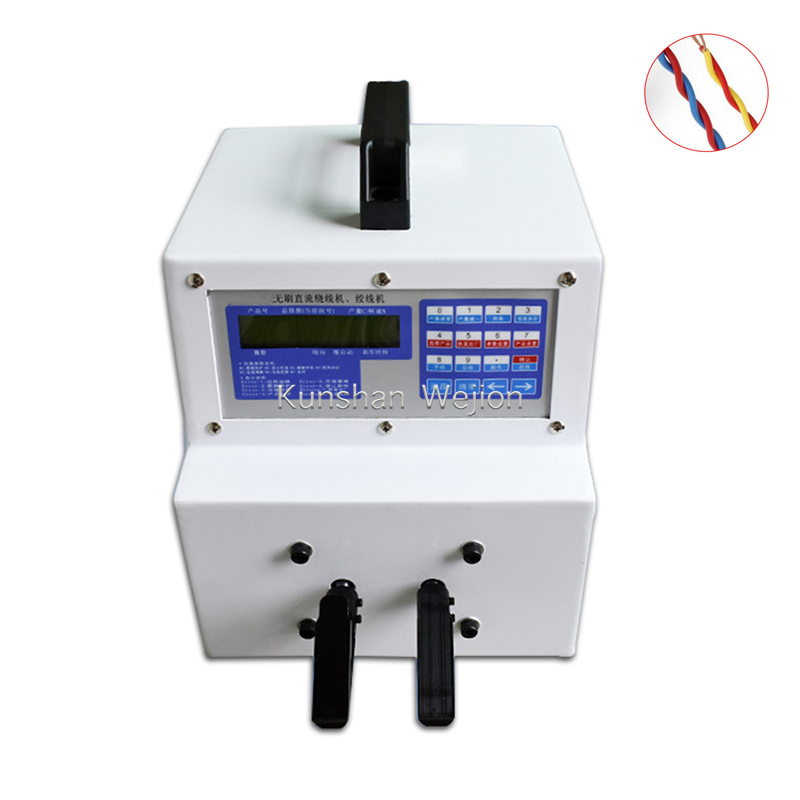

The JX – 100 uses an advanced LCD with backlight display, adopting a smartphone – like operation mode. This intuitive interface eliminates the disadvantages of traditional displays, reducing the learning curve and enhancing usability.
High – Performance Motor Design
With a direct – shaft motor, the JX – 100 minimizes torque loss, ensuring high power efficiency and precise control. This design contributes to its high – speed performance and consistent torque for accurate wire stranding.
Low – Maintenance and Durable
Engineered for zero maintenance, the JX – 100 eliminates components prone to mechanical wear, such as carbon brushes, electromagnetic brakes, and belts. Its advanced electronic control braking system and industrial – grade protection circuit ensure over 20,000 hours of fault – free operation, providing long – term reliability.
Data Security and Preservation
The machine offers comprehensive data protection for configured settings, which can be saved permanently. This ensures consistent production quality and simplifies operation resumption, especially in large – scale manufacturing.

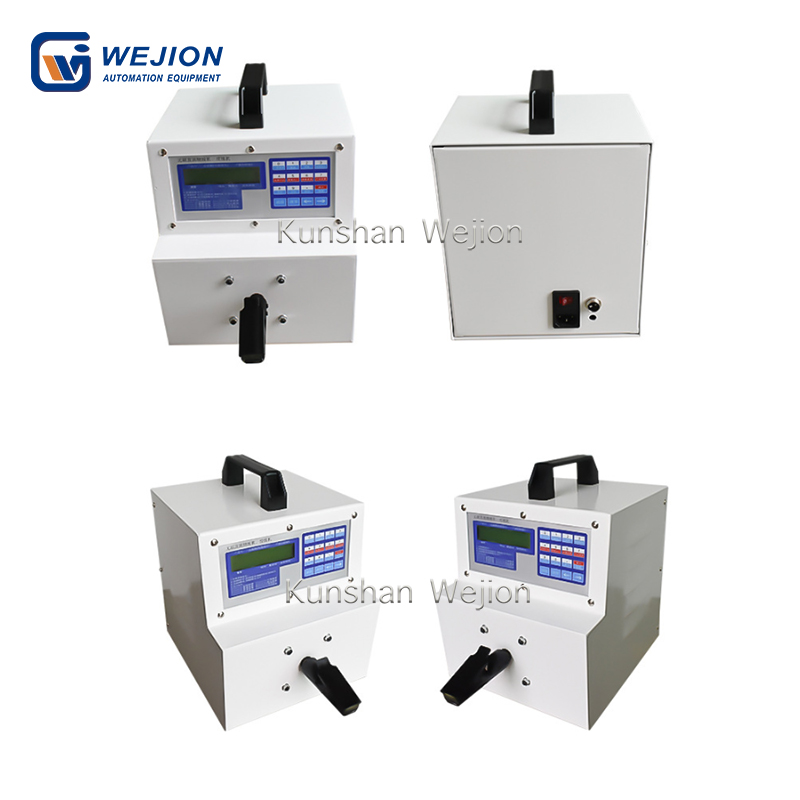

Compact and Lightweight
Measuring 363135cm and weighing 10kgs, the JX – 100 has a compact and lightweight design. This makes it easy to install, move, and integrate into various workspaces, optimizing floor space utilization.
