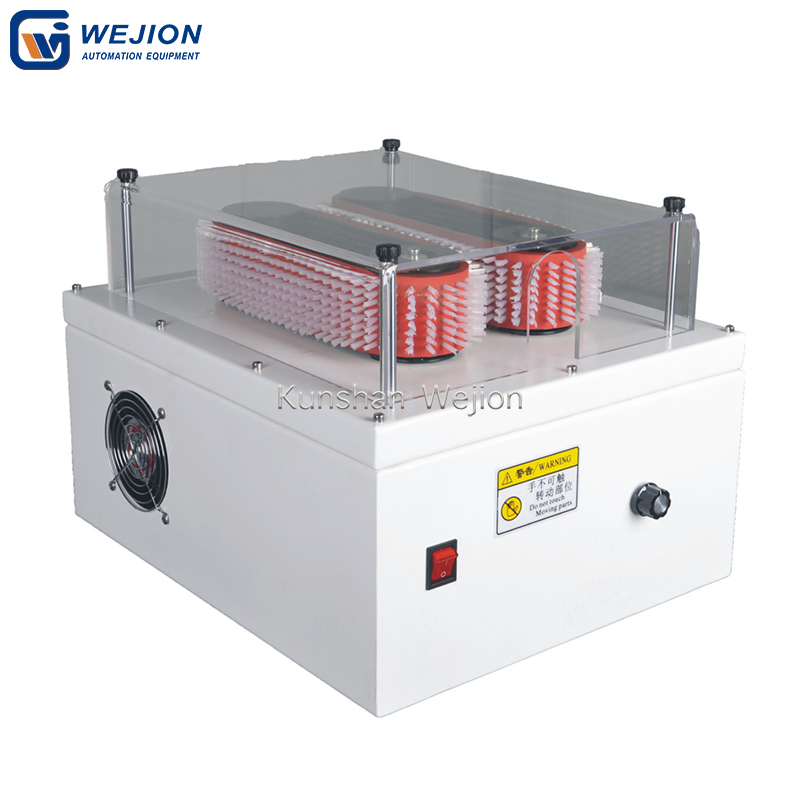

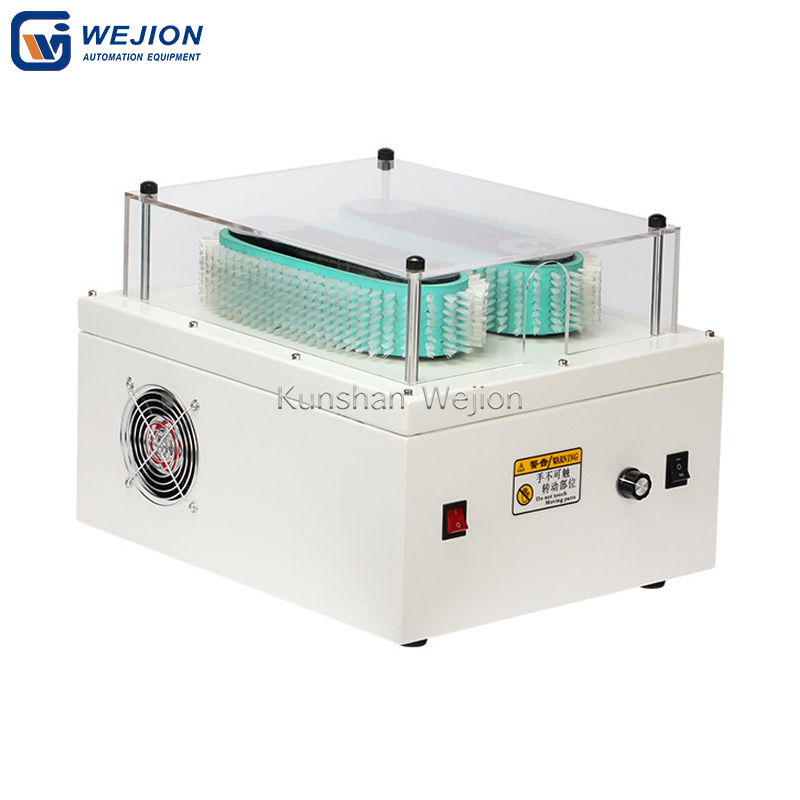

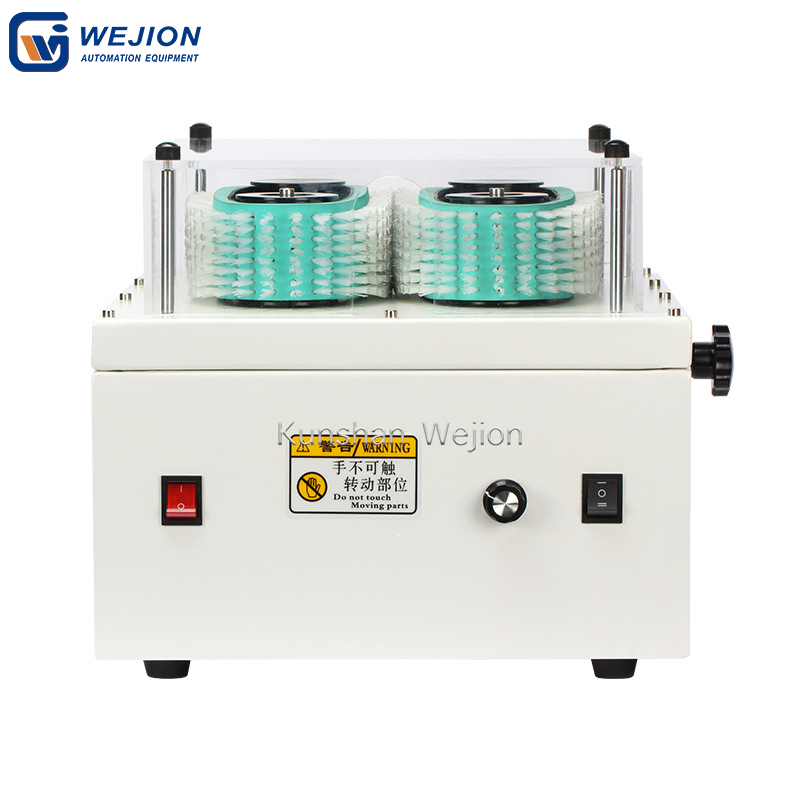

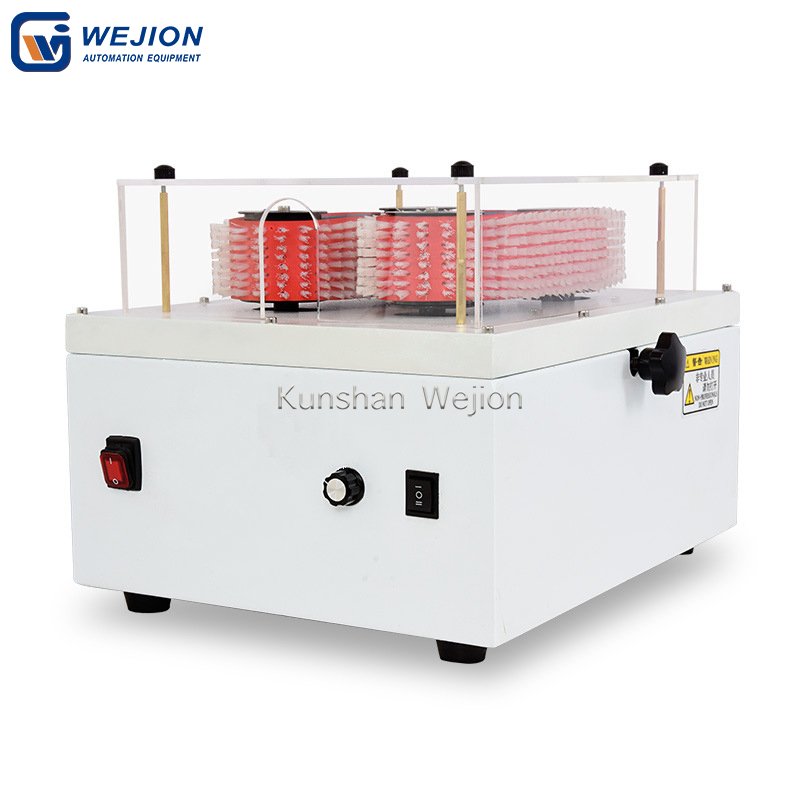

The T – 22 is a crawler – type wire brushing machine. It can brush shielded meshes flat, facilitating subsequent processing
Efficient Shielded Mesh Brushing

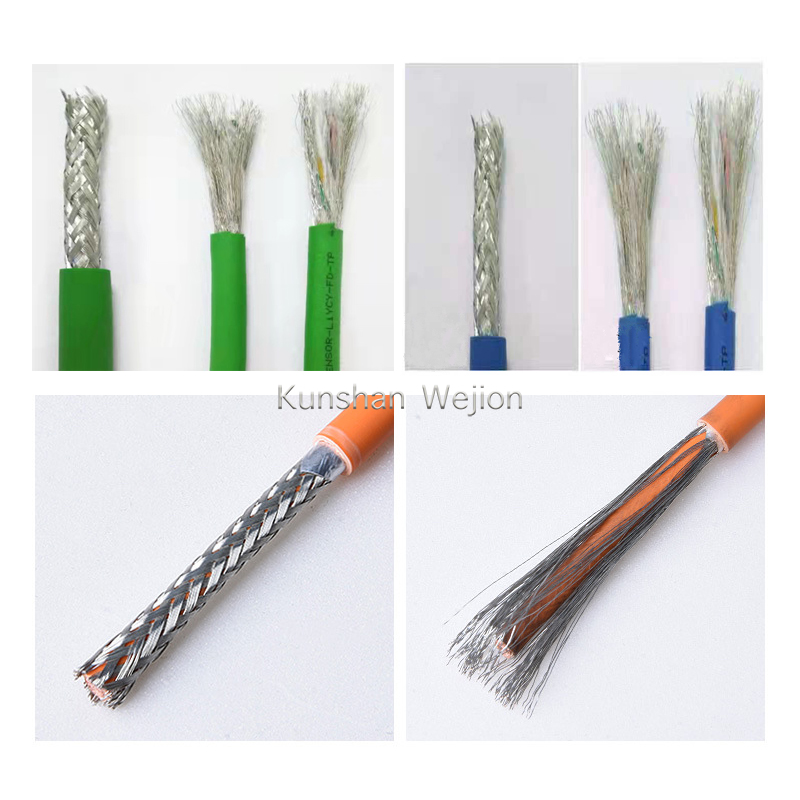

The T – 22 is engineered to streamline the process of brushing shielded meshes flat, a critical step for subsequent wire processing. By simply inserting the wire from the front end and rotating it slowly, the machine can effectively straighten out tangled or irregular shielded meshes. Similar to the motion of combing hair, brushing from the front to the back of the wire ensures that the shielded mesh is uniformly spread. Additionally, the option to pull the wire back and forth enhances friction, enabling the machine to easily untangle stubborn knots within the shielded mesh. This functionality is essential for applications where a smooth, well – arranged shielded mesh is required for optimal electrical insulation, signal transmission, or mechanical protection.
Versatile Wire Handling
With the capacity to handle wires with a diameter ranging from Φ1 – 30mm, the T – 22 caters to a wide spectrum of wire types, from medium – sized wires to large – cross – section wire harnesses commonly used in heavy – duty electrical applications. The adjustable crawler brush – wheel spacing allows operators to customize the machine to fit different wire diameters precisely. When dealing with large – square – millimeter wire harnesses, the machine offers a practical solution: by stripping approximately 30mm of the front part of the shielded mesh, it prevents the mesh from getting knotted around the wire core at the front end. This ensures that during the brushing process, the shielded mesh remains intact and does not become shorter than the stripping point, maintaining the integrity of the wire for further manufacturing or assembly.
Powerful and Consistent Brushing
Equipped with a power output of 400W*2, the T – 22 provides substantial power to drive the crawler – type brushing mechanism. This high – power setup ensures consistent and effective brushing performance, even when handling thick or stubborn shielded meshes. The brush length, which can be adjusted from 5 – 200mm, offers flexibility to accommodate different wire lengths and brushing requirements. Whether it’s a short – length brushing for small components or an extended brushing for longer wire harnesses, the machine can be configured to deliver the desired results, guaranteeing that each wire is processed to the highest standard.
Crawler – type Design for Superior Contact

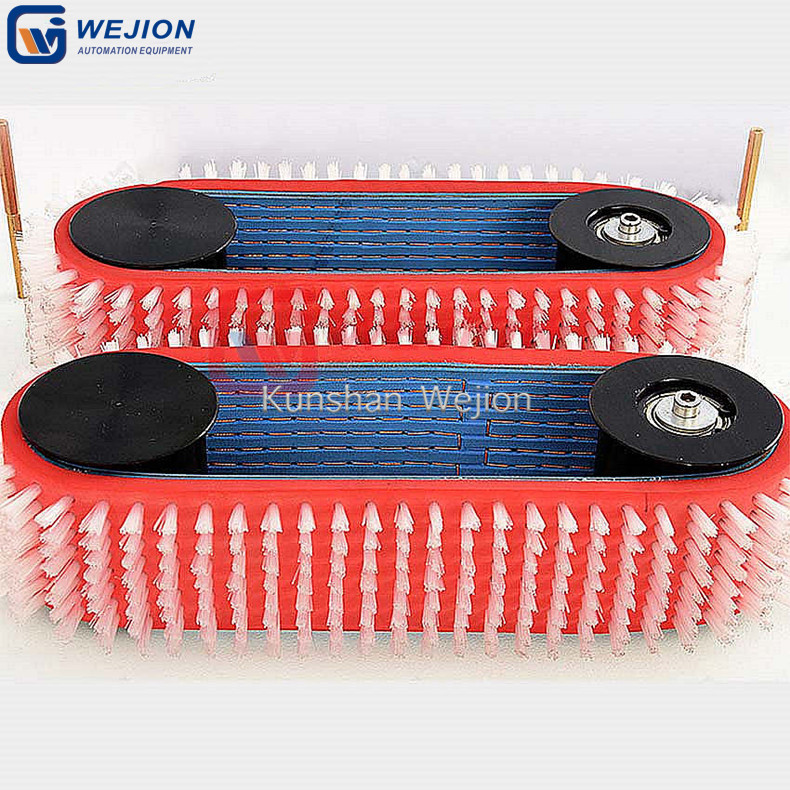

The unique crawler – type design of the T – 22 sets it apart from traditional wire – brushing machines. The crawler mechanism ensures continuous and even contact with the wire surface, allowing for more efficient and thorough brushing of the shielded mesh. This design distributes the brushing force evenly across the wire, minimizing the risk of uneven brushing or damage to the wire. The crawler – type structure also provides better traction and stability during operation, enabling the machine to handle heavy – duty wire – brushing tasks with ease.
User – Friendly Operation
Despite its powerful capabilities, the T – 22 features an intuitive operation process. The simple steps of inserting, rotating, and optionally pulling the wire make it accessible for operators of varying skill levels. The adjustable brush – wheel spacing can be easily modified to suit different wire sizes, and the clear instructions for handling large – square – millimeter wire harnesses (such as the recommended stripping length) simplify the process for complex wire – processing tasks. This user – friendly design reduces the learning curve and training time required for new operators, facilitating seamless integration into production lines.
Robust and Durable Construction
Measuring 4248H32cm and weighing 52kgs, the T – 22 has a sturdy and robust build. Its larger size and substantial weight contribute to its stability during operation, preventing vibrations or movement that could affect the brushing quality. Constructed from high – quality materials, the machine is designed to withstand the rigors of continuous use in industrial environments. The durable crawler mechanism and brush – wheel components are built to endure frequent contact with wires, ensuring long – term reliability and minimizing the need for frequent repairs or replacements.
Wide – range Power Compatibility
The T – 22 is compatible with both 220V and 110V power supplies at frequencies of 50 – 60Hz, making it suitable for use in diverse regions and electrical setups. This wide – ranging power compatibility allows manufacturers to easily integrate the machine into their existing production facilities without the need for extensive electrical modifications. The stable power connection, combined with the machine’s high – power output, ensures consistent performance, enabling it to handle large – scale wire – brushing operations with efficiency and precision.
| Model | T-22 |
| Power supply | 220/110V,50-60Hz |
| Power | 400W*2 |
| Brush length | 5-200mm |
| Wire dia | Φ1-30mm |
| Size | 42*48*H32cm |
| Weight | 52kgs |
